Water Flow Meter (Single Jet)
brewery water flow meter
water flow meter for brewery with tri clamp
Water Flow Meter (Single Jet)

Water Flow Meter (Single Jet)

Regular price
USD 80.00
Sale price
USD 80.00
Unit price
per
Shipping calculated at checkout.

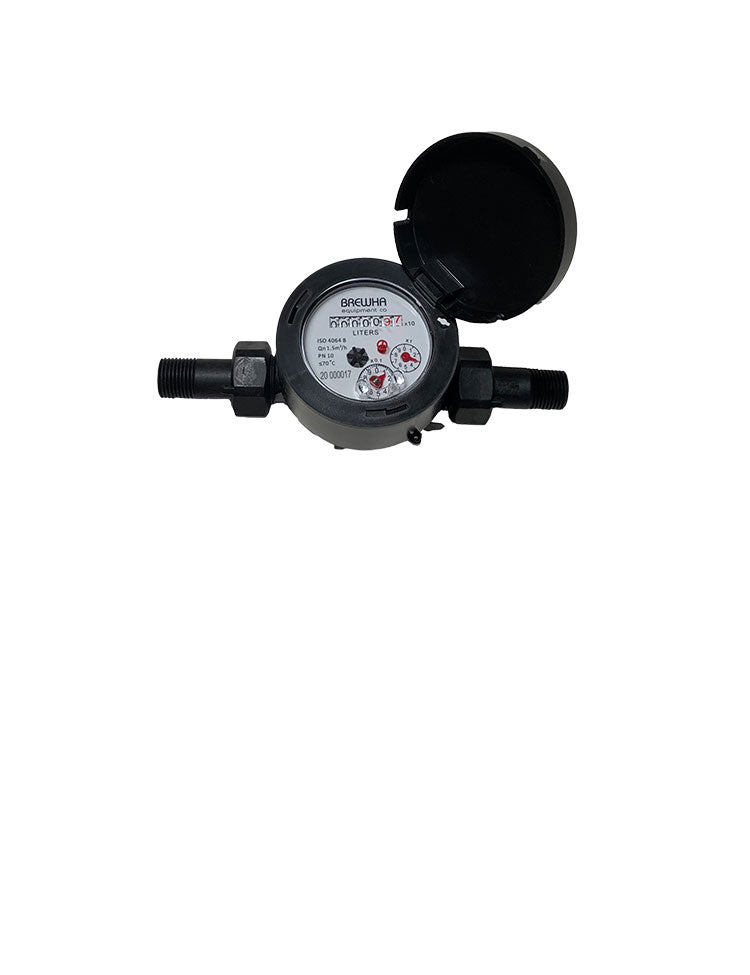

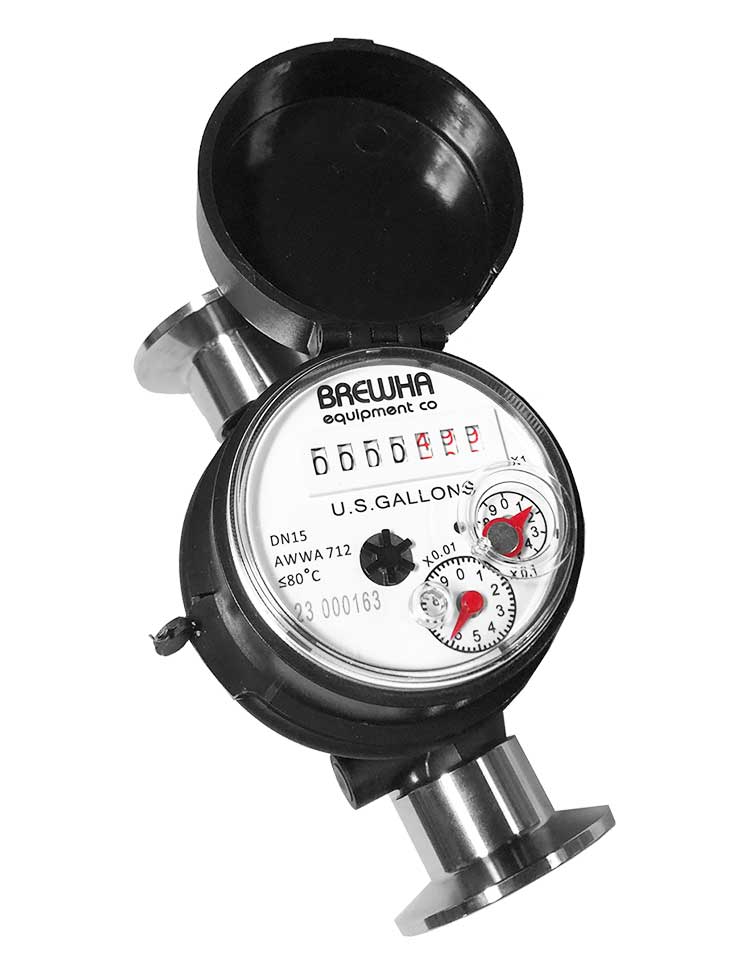

This accurate and reliable Single Jet Water Flow Meter is useful for metering the amount of water going into your brew system. It can be particularly useful when adding sparge water to add the precise amount needed to hit your pre-boil target. It is recommended to install it in a horizontal orientation and flow rate should exceed 1L/0.25Gal/minute for accurate reading. Connects to either a 3/4" NPT coupling, or 1.5" tri-clamp compatible ferrules. The L meter has been tested and certified by WRAS for sanitary water supply and have a dial measuring precision of 0.1L and are >98.5% accurate. The Gal meter has been tested and certified by the Water Quality Association to meet ANSI/NSF Standard 61 for materials safety, and ANSI/NSF Standard 372 for lead free compliance. These meters have a dial measuring precision of 0.01gal/1.3oz and are >98.5% accurate. Both meters are for use with cold water <65C/150F.

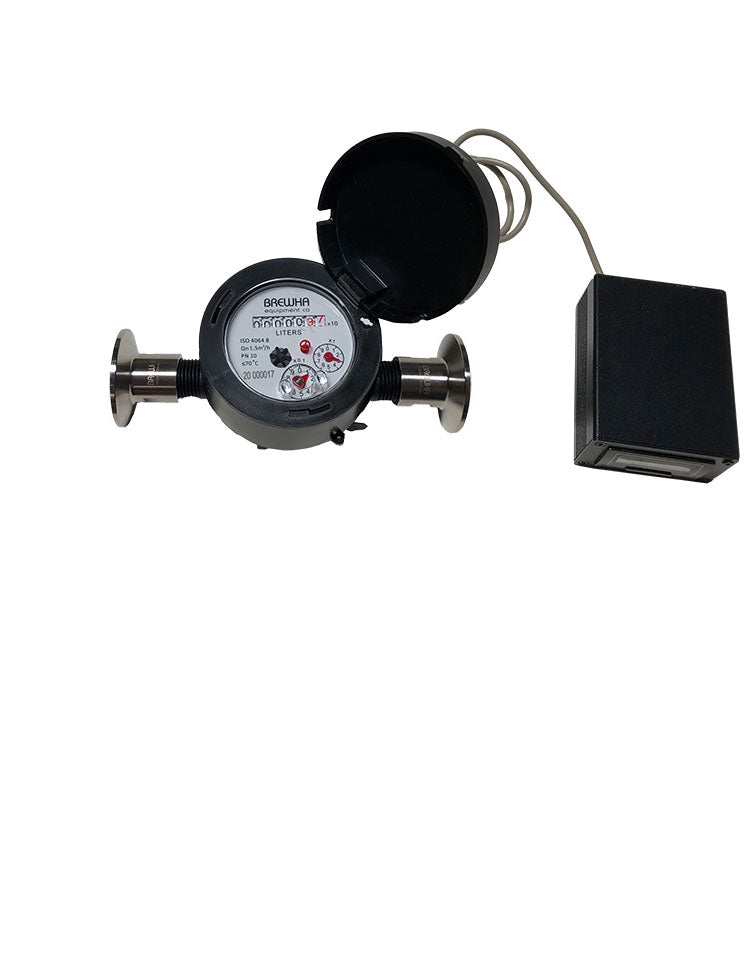

The digital resettable counter option displays water volume in 1 unit increments (L/Gal) and has a 120cm/4' cord length and is removable (from the meter) when not in use.

Flow Meter manual
