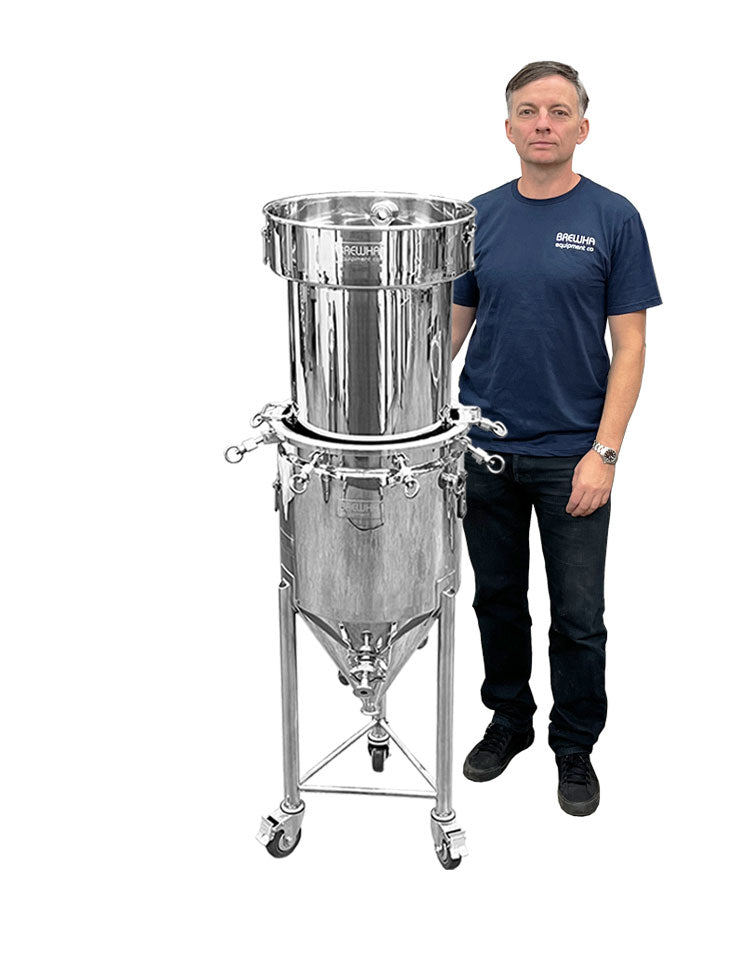

All in One Pilot Brewing System 10 Gallon 40L Medium BIAC 240V/20A

All in One Pilot Brewing System 10 Gallon 40L Medium BIAC 240V/20A

Regular price USD 5,390.30
Regular price Sale price USD 5,390.30
Sale Sold out
Shipping calculated at checkout.
Choose Accessories

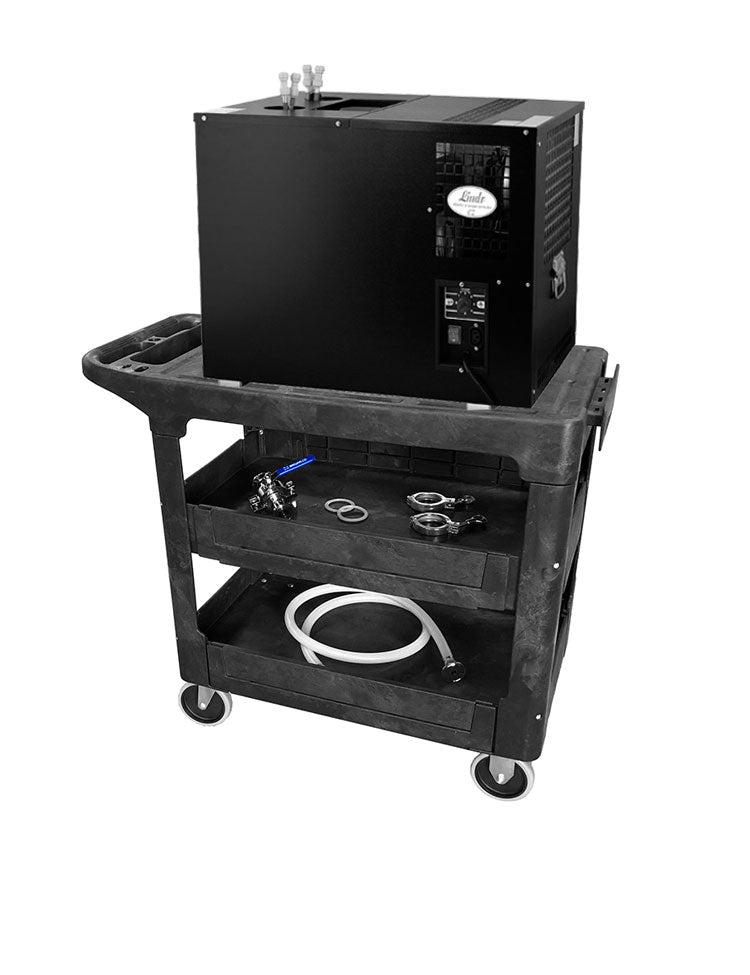

Choose Water Chiller

This electric all-grain brewing system for home and pilot batches offers the most straightforward approach to crafting exceptional beer.

10 Gallon Brew System Specifications

Max grain bill 11kg/25lb
Max pre-boil volume 54L/14 gallon
Beer volume 20-40L/5-10 gallon
Gross volume: 60L/16 gallon gross volume
Fermenter dimensions: 110cm/43" height with lid off (50cm/20" outside diameter)
Combined height fermenter and Mash Colander: 162cm/64" height; 224cm/88" ceiling recommended (244cm/96" with electric hoist)
Pressure: 14.9psi in vessel / 7psi in jacket
Mass: 120kg/250lb
Electric draw: 240V/20A 1Φ; 4.5kW

The BREWHA® BIAC® All in One complete brewing system brews delicious craft beer better and more consistently than other systems on the market.

The exclusive, patented design is the only brewing system where the entire process (hlt water heatup, mashing, kettle boiling, and fermenting) occurs in the portable conical fermenter tank saving you space, time, and money. And with the boil occurring in the fermenter, you achieve perfect heat sanitation without the use of toxic chemicals, ensuring that you are drinking the freshest, best tasting beer possible.

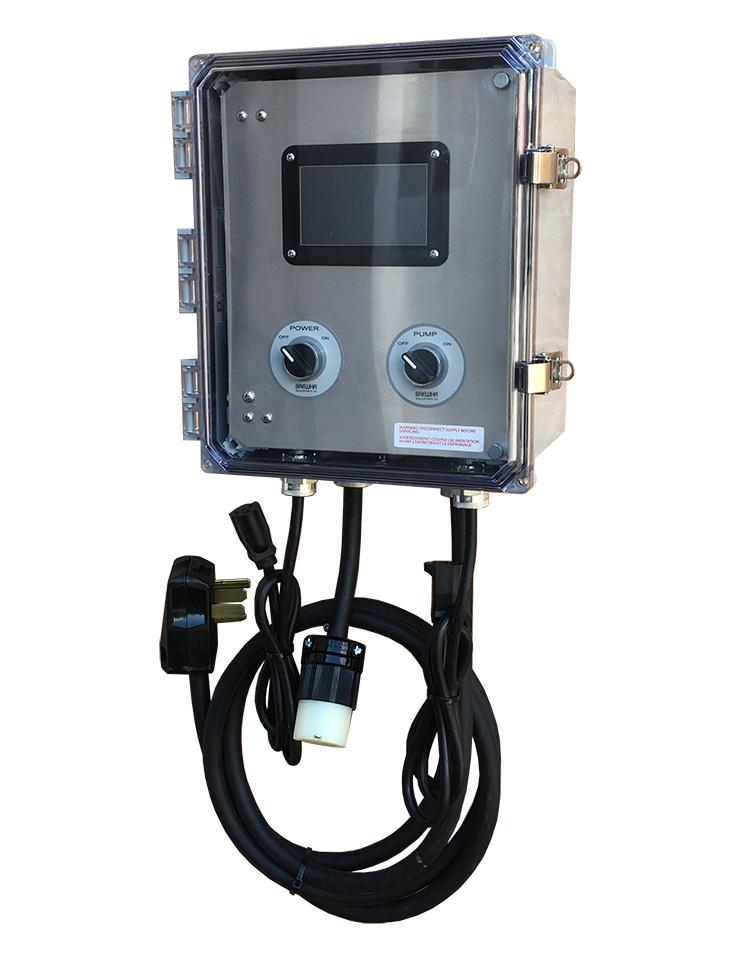

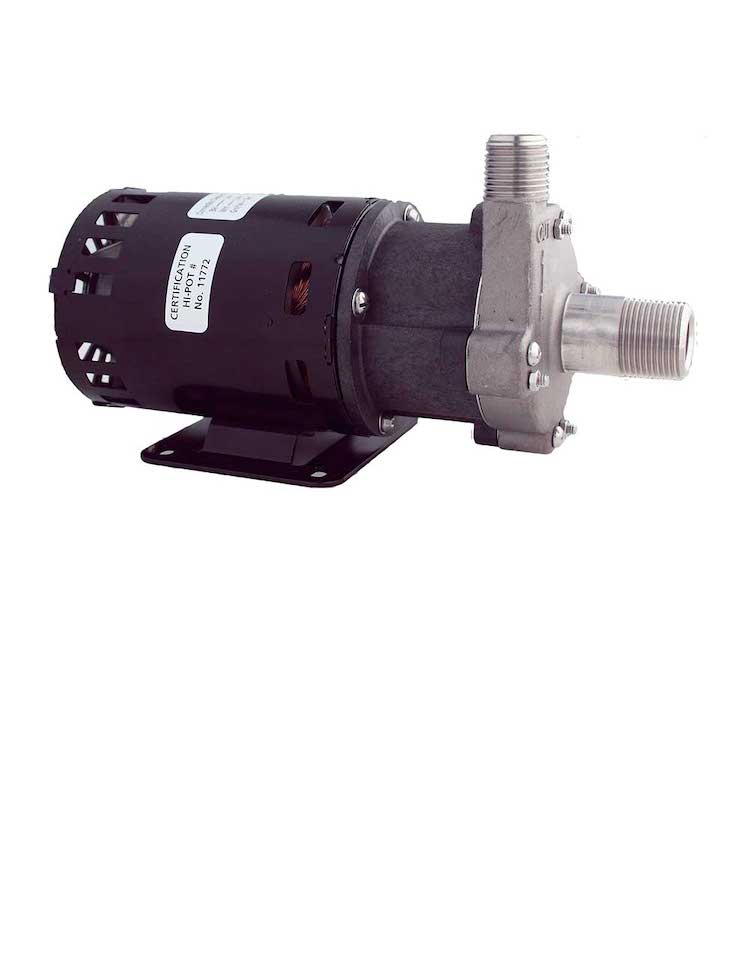

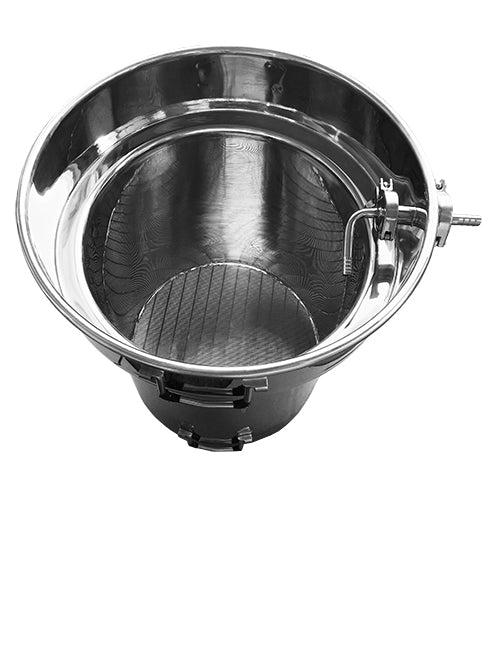

For expanding production capacity just add additional conical fermenters with heaters. The one Mash Colander, pump and controller that are included with the systems can be used with additional fermenters on brew day.

See specifications page for more details. Visit this page to see difference between Basic and Complete Accessory package.







Video: Installing the BREWHA BIAC brewery equipment
Video: How to open a brewery (with budget and floor plan)
Benefits of the BIAC beer brewing system
BIAC beer brewing system specifications
BREWHA BIAC beer brewing system manual
Read more brewing articles



    Customer Reviews

    Based on 26 reviews
    88%
    (23)
    8%
    (2)
    0%
    (0)
    0%
    (0)
    4%
    (1)
    T
    Thomas Lanuto
    Microbrewery BIAC Brewing System

    I received the Microbrewery BIAC system this past Fall 2021 and it is great. I have brewed everything from Session IPA's, Triple Hop IPA's, Porters, Saisson, Lager, Pumpkin ale and a Shandy. Easy to put together and after a few times cleaning and cleaning the reinstall is a breeze. I just bought the chiller which I git today and I am excited to put it to work. If all works out I am going to the largest system BrewHa has for a potential microbrewery on our farm. I would recommend BrewHa to all.

    J
    John P
    Great system for grain brewing

    Very impressed with the quality of the Medium BIAC system as well as the components (clamps, hoses, pump, etc) that come with the system. As a brewer at a local microbrewery, I am well in tune with cheap parts vs good quality. Everything I have purchased from BRewHa have been of solid quality. When the system arrived, it was very straightforward to assemble (I do have experience with this type of equipment). Bags of components were grouped together so you could figure out where things went. Not to mention, I did read the manual and watched most all videos before purchasing the BIAC, so The one thing I did not get was the chiller. I plan to just use water, however may still get the chiller for summer months. Just brewed my first beer in the BIAC, a Pale Ale. Used Brewsmith to create my recipe with BRewHa Mash and Equipment profiles. Kettle heats up from about 50 degrees to a target strike water of 161 in about 45 mins at 100% power. This first recipe had 22 pounds of grain into a strike volume of 13 gallons of water. I will say, I was not able to lift the colander up more than two inches due to weight and vacuum created from pulling up against the water. I ended up draining out wort using racking arm wort into two buckets, then was able to lift up colander to drain. May need a hoist for future brews. Only negative I have thus far is the racking arm needs to move freely regardless of gasket type. Hard to move with regular gasket and hard to seal with Teflon one.

    J
    Josh Milburn
    Nothing comes close!

    I’ve had the Brewha for about a month now and to sum it up with one word is amazing. Buying a system that costs this much you expect a lot, and Nathan delivers. My wife bought this for me for my birthday and Nathan helped her get the exact system I needed (wanted). Shipping was fast and reasonable. The set up was daunting at first but having a simple understanding of how it works I quickly got it together. My first brew I made a few mistakes only because it was my first all grain brew. The beer still turned out fantastic and is the best beer I’ve made to date. The customer service is hands down the best I have ever experienced. I had a few questions and I received a reply from Nathan in 9 minutes. I don’t believe there is a product that can even come close to the Brewha. I’m proud that this is a Canadian product and would recommend Brewha to anyone that wants to make great consistent beer.

    P
    Paul Gilbert
    15 gal 4in1

    Love it! I’ve brewed once on this and am still learning it’s capabilities. The jacket holds a little over a gallon and is not enough for a traditional sparge. I’m adjusting recipe to either skip the sparge or use a separate heating vessel for heating sparge water.

    S
    Sho VanArsdale
    Awesome product!

    Although I’m not fermenting in the vessel everything is a breeze with the large BIAC. One small issue is burning on the element. But other than that an awesome product!
