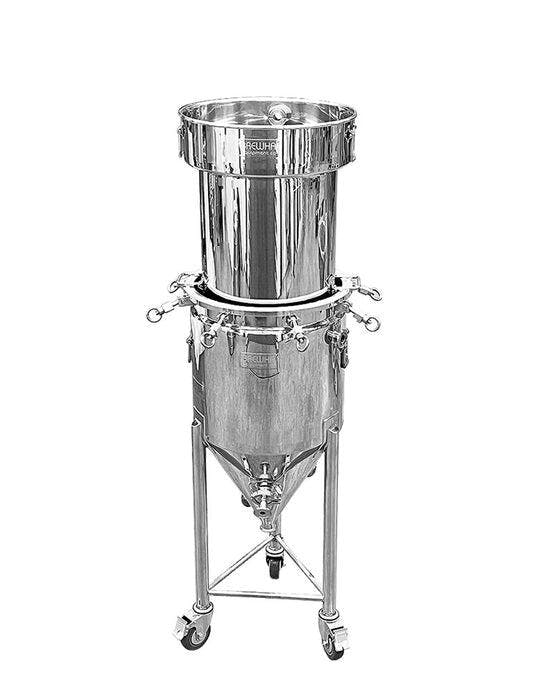

All in One Brewing System 5USG 20L Small BIAC (240V/11A)

All in One Brewing System 5USG 20L Small BIAC (240V/11A)

Regular price USD 4,646.45
Regular price Sale price USD 4,646.45
Sale Sold out
Shipping calculated at checkout.
Small Choose Accessories

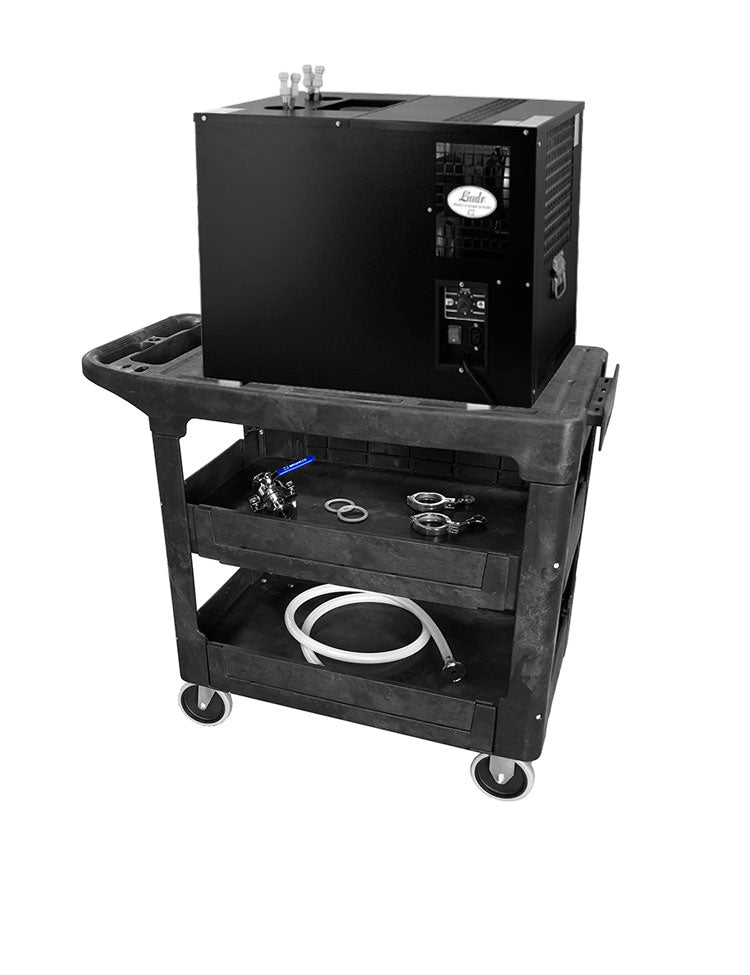

Small Choose Beer and Wort Chiller

Nothing is better for business than delicious craft beer. And nothing brews delicious craft beer better than the BREWHA® BIAC® complete all in one brewing system.

The patented All in One Brewing System 5USG 20L Small BIAC (240V/11A) BREWHA complete beer brewing equipment system for home and pilot breweries is a high-quality, affordable, flexible, turnkey brewing system that makes brewing simpler, more enjoyable, and easier to do. The exclusive, patented design is the only brewing system where the entire process (mashing, boiling, and fermenting) occurs in the portable conical fermentor saving you space, time, and money. And with the boil occurring in the fermenter, you achieve perfect heat sanitation without the use of nasty chemicals, ensuring that you are drinking the freshest, best tasting beer possible.

Specifications
Max grain bill: 5.5kg/12lb
Max pre-boil volume: 24L/6 gallon
Volume (batch): 12-20L/3-5 gallons
Volume (gross): 30L/8 gallons  gross volume
Dimensions of fermenter: 90cm/35" height with lid off (40cm/16" outside diameter)
Mash Colander and lidless fermenter combined height: 132cm/52" height; 193cm/76" ceiling recommended (216cm/85" with electric hoist)
Pressure: 14.9psig in vessel / 7psig in jacket
Mass: 85kg/187lb
Electrical draw: 240V/11A 1Φ; 2kW (21A / 4.5kW option)

Since the larger systems are almost identical scaling up is easy with the BREWHA system. Recipes and experience learned on a smaller sized system can be easily translated.

Brewery capacity can be easily expanded by adding additional stainless unitank conical fermenters with heaters from this page. Each additional BREWHA fermenter can be directly brewed in when used with the mashing and heating hardware purchased with a BIAC brewing system, saving time, space and ensuring perfect sanitation for best results.

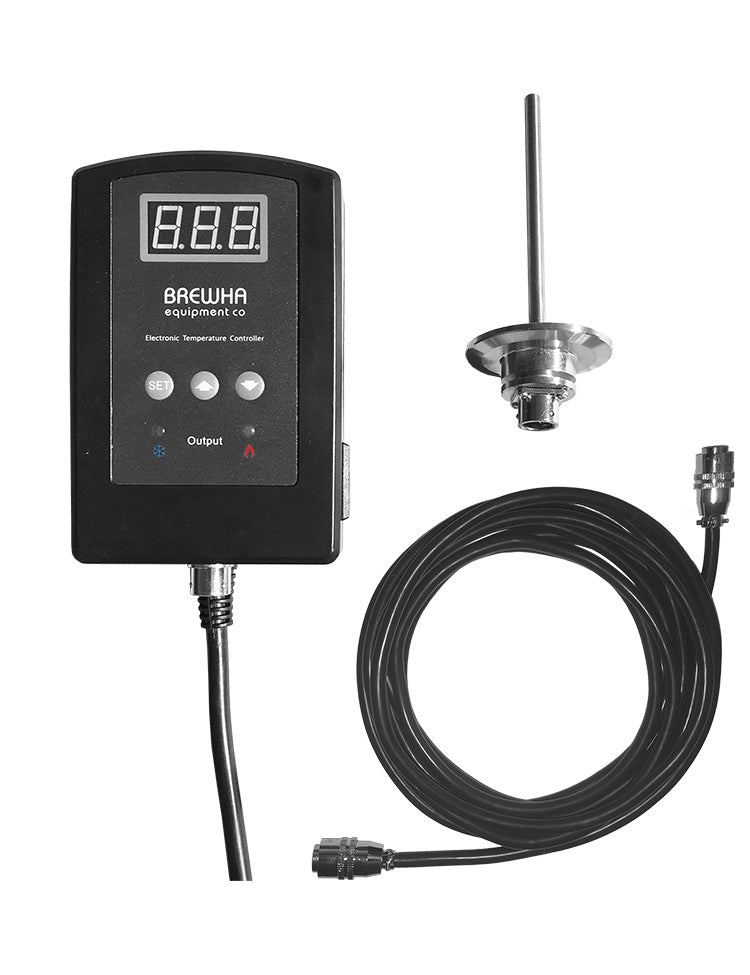

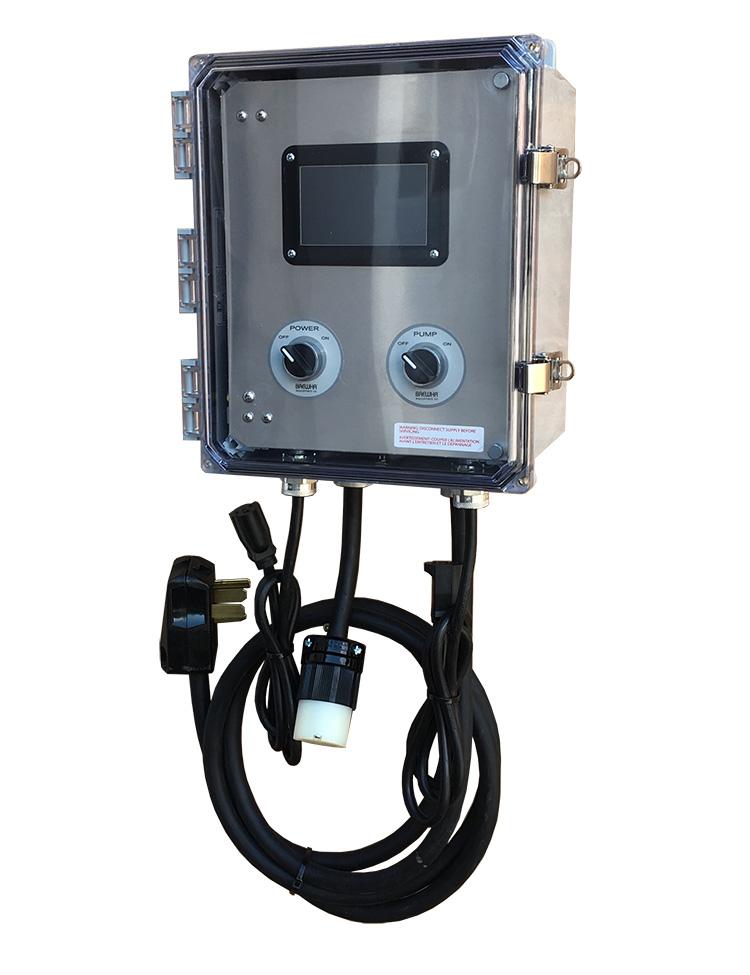

This All in One brewing system comes with high-quality parts and electrical touchscreen power controllers. Power controllers are inspected third-party and certified for safety by CSA or ETL/Intertek under Canada's SPE1000 (recognized by most jurisdictions throughout Canada and the US, but final approval rests with the local Authority Having Jurisdiction/AHJ; confirm with local authority before purchase).

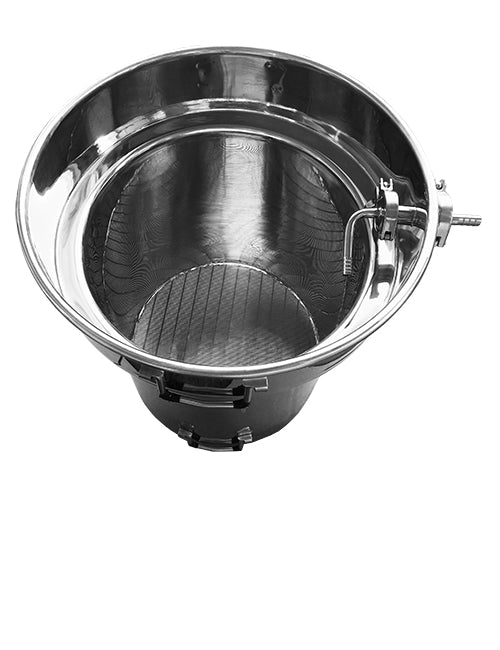

The BREWHA Pilot Microbrewery system includes a wedge wire false bottom in the Mash Colander and a 14.9psi pressure rating on the 4-in-1 fermenter (fermenters can be used as brite or serving tanks).

Note: See specifications page for tank and batch size.







Video: Installing the BREWHA BIAC brewery equipment
Video: How to open a brewery (with budget and floor plan)
Benefits of the BIAC beer brewing system
What accessories are included with each BIAC brewing kit?
What else is needed to open my brewery?
BIAC beer brewing system specifications
BREWHA BIAC beer brewing system manual
Read more brewing articles here



    Customer Reviews

    Based on 5 reviews
    60%
    (3)
    20%
    (1)
    0%
    (0)
    0%
    (0)
    20%
    (1)
    T
    TIMOTHY T.
    Thank you!

    I have just racked and bottled my first batch of American PA on the small BIAC purchased 1 month ago! Everything worked perfectly! The equipment arrived very timely, and was packaged extremely well. I was able to complete the majority of the set-up with the user's manual and on-line reference materials. Nathan was super supportive on several occasions to get me through - greatly appreciated! Even answered a couple of my emails well after hours and a weekend on brew day! This has been an awesome experience! Thanks again! TimCertificate in Craft Brewing Candidate - Regis University Denver, Colorado

    J
    Joe F.
    Brewha Small BIAC

    Excellent! love how compact the unit is, I can brew easily in my condo dining nook, roll it over to the kitchen sink to cool with tap water then roll it back into place for fermenting.

    R
    Robert R.
    Small BIAC Review

    We have brewed two batches on the small BIAC (5 gallon) and it's so easy, it feels like we're cheating. The whole system is a thing of beauty. We haven't carbonated in the 4-in-1, yet. Can't wait to brew more.

    R
    Ryan
    finally brewing again because of BIAC

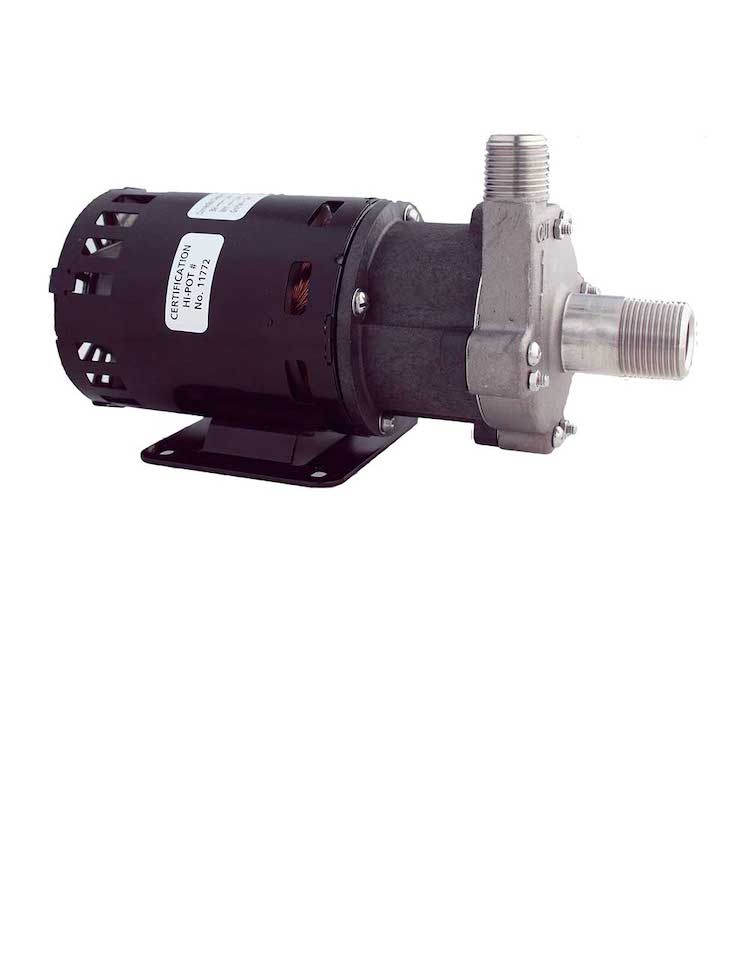

    First off, this is a very well-made piece of equipment. Living in an apartment without easy access to outdoor space or a 240V outlet, the small BIAC is a near-perfect solution for brewing all-grain with minimal space/cleanup.It is definitely very different from other equipment I've used, so the learning curve is substantial, but Nathan has been amazing with customer support. After 3 batches, I'm still figuring out how to get the best results. There seems to be a fairly small window of strike volumes you can use without leaving the grain uncovered or overflowing. Perhaps some of the guesswork will be taken out of the process with the upcoming Beersmith update. Although the pump is not necessary, I feel it might be worth the extra investment to ensure consistent mash temps and utilize all the strike volume in the cone section.That being said, I'm very impressed with the BIAC overall. If not for this gear, I'm not sure it would be feasible for me to be brewing the way I want. After a couple batches worth of experience, it's much simpler to use than other setups, and cleanup is a breeze. I'm sure I'll grow to love it even more as I get to know it better.For anyone in a similar situation, I wholeheartedly recommend the small BIAC. In fact, even if you don't live in an apartment, you should seriously consider this system for the innovative design, ease of use, space-savings, and cleanup.

    J
    Jim
    Brewing is enjoyable again!

    I wanted to let you know how impressed and pleased I am with my BIAC.I made my first brew a few weeks ago and the 3in1 performed beautifully. Being able to Mash, Boil and Ferment all in one vessel made my brew day shorter and more enjoyable.Controlling mash temperatures precisely is a great advantage. By using the power of 240v with a 5500W heating element as on your system, just kicks it up a notch. Having a rheostat on the power box (not having to fiddle with the digital controller) to control the amount of roll in the boil I found helpful.I brew high gravity beers throughout the year. Having a mash colander that can handle large amounts of grain is a plus. In the past I have had to mash twice to get to the gravity I wanted. I really dislike adding DME and or extending the boil. As you know it messes with the color and makes for a longer brew day.Having a water jacket for cooling, and maintaining the fermentation temperature is a fine addition. The large surface area, less chance for contamination and not having to clean a plate chiller, priceless…well almost.The 3in1 will allowed me to sell and down size a bunch of my brewing equipment. I don’t need carboys, chillers, buckets, ice chests and a refrigerator taking up space.After fermentation and transferring to kegs, I had an easy cleanup and placed all of the fittings, valves, hoses and control box into the colander and rolled the 3in1 into a closet. Cheers to you!!
