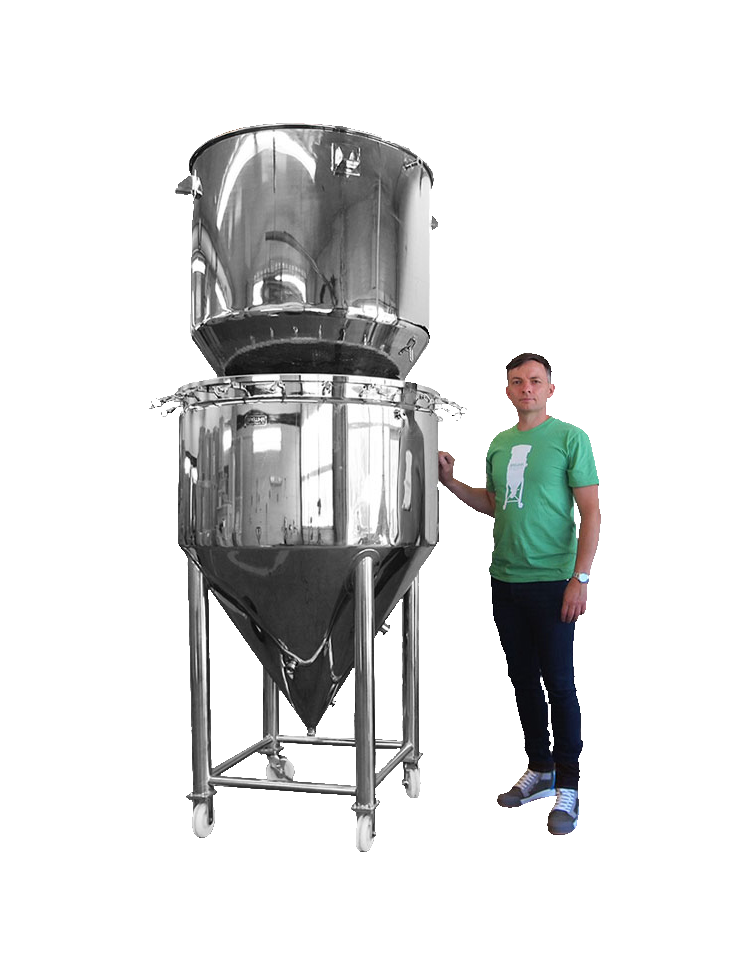

3 BBL Brewhouse Brewing System and Fermenter

3 BBL Brewhouse Brewing System and Fermenter

Regular price USD 21,974.70
Regular price Sale price USD 21,974.70
Sale Sold out
Shipping calculated at checkout.
Choose Electrical

3 BBL 3HL Craft brewery complete electric brewing systems, equipment and brewhouse which comes with a conical fermenter can brew up to 51BBL/year (12000pints) on a three week fermentation cycle in the one fermenter that is included with the 3BBL brewhouse systems. With the removable Mash Colander being the 'brewhouse', for increased production capacity just add additional 3 BBL stainless conical unitank fermenters (BIAC 5-in-1s) and use the one Mash Colander in each additional fermenter on brew day. (See this .gif for how adding multiple fermenters to the one BIAC brewhouse allows one to easily scale up your 3BBL brewhouse brewery production.)

3BBL Brewing System Specifications:

Max mash grain bill 100kg/220lb
Max. pre-boil wort volume 400L/105gal
Beer volume 180-360L/1.5-3BBL
Gross tank water volume  240L/63.4USG
Stainless conical fermenter dimensions:  162cm/64" height with lid off; (90cm/35" outside diameter)
Combined height (fermenter and Colander tanks): 251cm/99" height;  358cm/141" ceiling recommended (305cm/120" minimum ceiling over brewhouse)
Fermenter tank pressure: 14.9psi in vessel / 7psi in jacket
Total kit mass: 475kg/1050lb
Electrical draw for brew temperature control:  240V or 208V; 1Φ/100A (2 hots, neutral and ground) or 3Φ/75A (3 hots, neutral and ground); 22kW heaters plus 1hp pump


Business thrives with delicious craft beer. Nothing brews delicious craft beer better than the BREWHA® BIAC®.

The patented BREWHA complete beer brewing equipment all-in-one kit for home, nano, micro-breweries and brew pubs is a high quality, affordable, flexible, turnkey brewing kit that makes brewing simpler, more enjoyable, and easier to do. The exclusive, patented design is the only brewing kit where the entire process (heat, mash, boil, and ferment) occurs in the portable stainless conical fermenter tanks saving you space, time, and money. And with the boil kettle electric heating occurring in the fermenter, you achieve perfect heat sanitation in the vessel without the use of toxic chemicals, ensuring that you are drinking the freshest, best tasting beer possible. Electric temperature control during brew fermentation is easily achieved with either the stainless electric immersion water heaters for heating, or by using the water jacket surrounding the tank through which cooling water can be ran for chilling; our electric brewery water chillers make this easy to set up and easy to operate.

The recipes and experience learned with smaller sized fermenter tanks can be easily translated to the larger sized tanks making scaling up smooth and easy.

The BREWHA Microbrewery brew systems includes a wedge wire false bottom in the Mash Colander kit for high mash efficiency and a 14.9psi pressure rating on the fermenter unitank which means the stainless fermenters can be used as brite and serving tanks. Once fermentation is complete, the yeast can be removed out the bottom of the tank and the fermenters connected to one of our chiller dispensers for serving the beer, or beer transferred into kegs.
