March 7S Brewery Water and Beer Pump

March builds high quality pumps that will provide years of dependable service. Unlike cheaper pumps that can be frustrating to operate (due to such reasons as poor motor and body alignment leading to binding, poorly cast and low quality parts being easily broken, under powered motors leading to stoppage when grain enters the pump head and motors that readily burn out) these pumps are brewery workhorses that will provide years of dependable service.

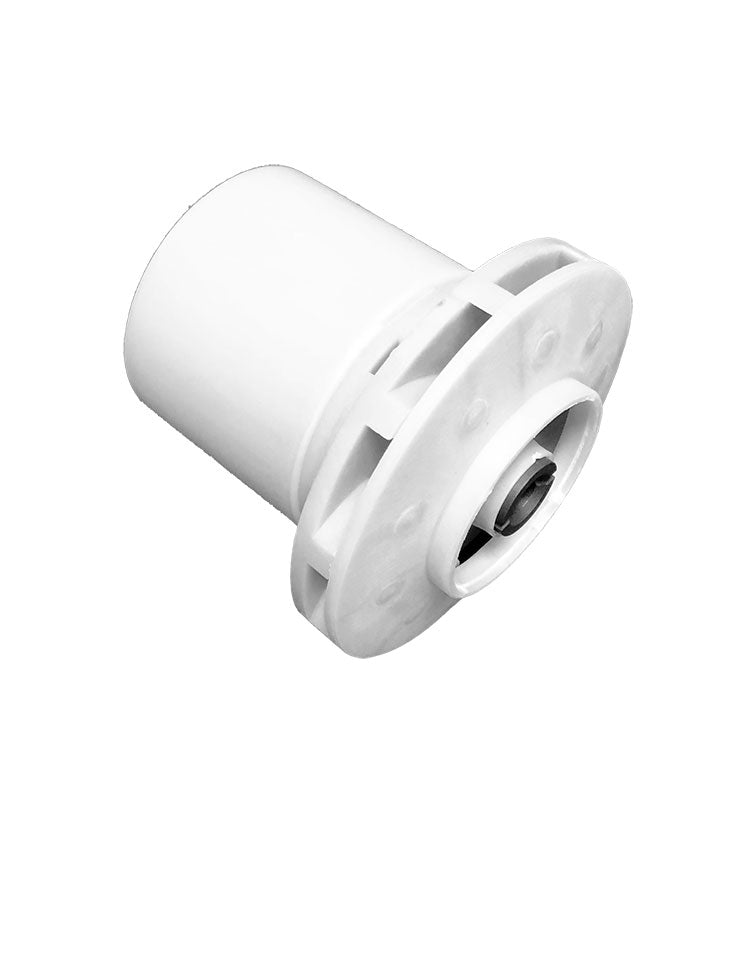

These pumps are magnetic drive units (not shaft/direct drive like cheaper pumps) built specifically to handle hot wort and water. The benefits of a magnetic drive pump are that they are more reliable and require less maintenance, saving you money. Since they use a magnet to turn the impeller, the impeller is fully enclosed; there is no mechanical seal (where the drive shaft enters the head, connecting the impeller to the motor) which is leak prone and can be expensive to repair, and they are not positive displacement, which can over-pressurize leading to damage or rupture. However, they cannot handle high levels of solids (don't let a lot of grain into the pump hose) and do require liquid being pumped to lubricate and cool the impeller. If the pump is ran dry for a period of time the impeller and shaft may become overheated and damaged. To regulate the flow use a valve on the discharge/outlet and always allow full, unrestricted flow into the pump.

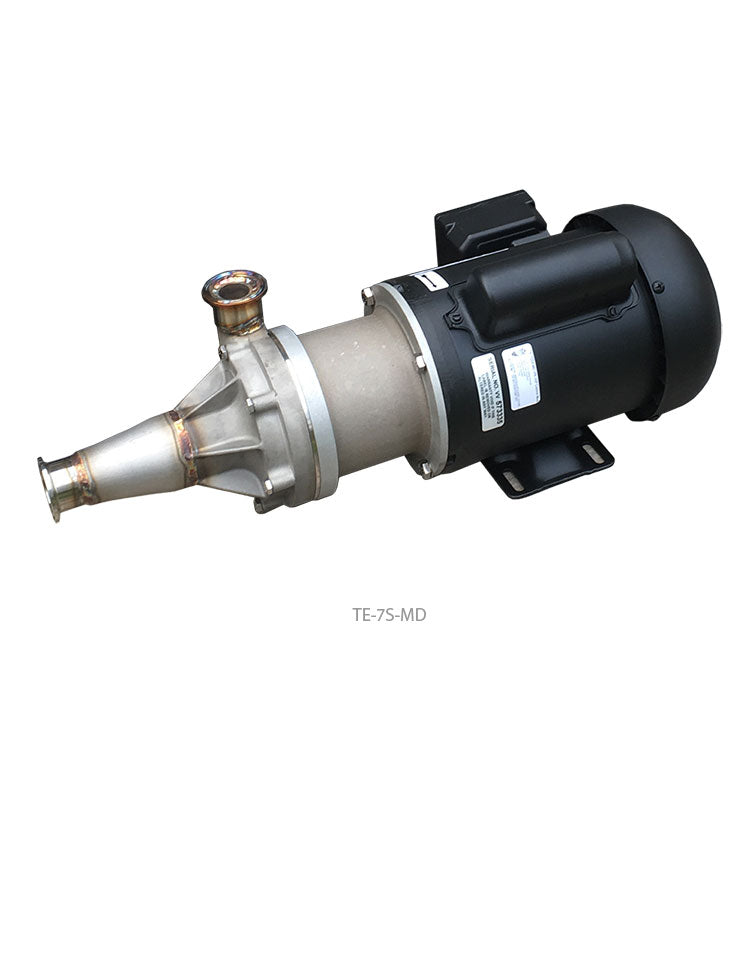

The TE-7S-MD has a maximum flow rate of 53gpm/200Lpm or head of 57ft/17m (maximum pressure of 25psi but with back pressure and 1/2" hose approx 4gpm at 18psi). The TE-7S-MD can be wired for either 120 or 240V power. The pump comes with two welded 1.5" TC connectors. Click here to see a smaller, less powerful version of this pump.

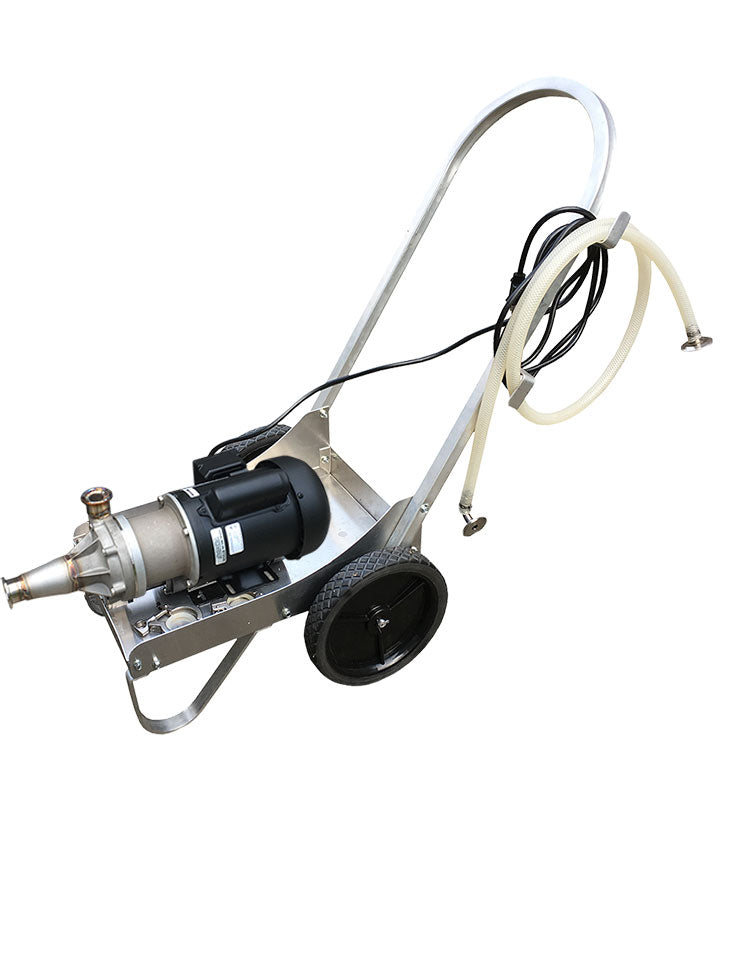

Additional products can be added such as hoses (8' plus 3' of 0.5"ID and 3' of 1"ID braided silicone hose), two 1.5" TC sanitary clamps, two 1.5" TC silicone gaskets (7S comes with welded TC connectors) and a pump cart.

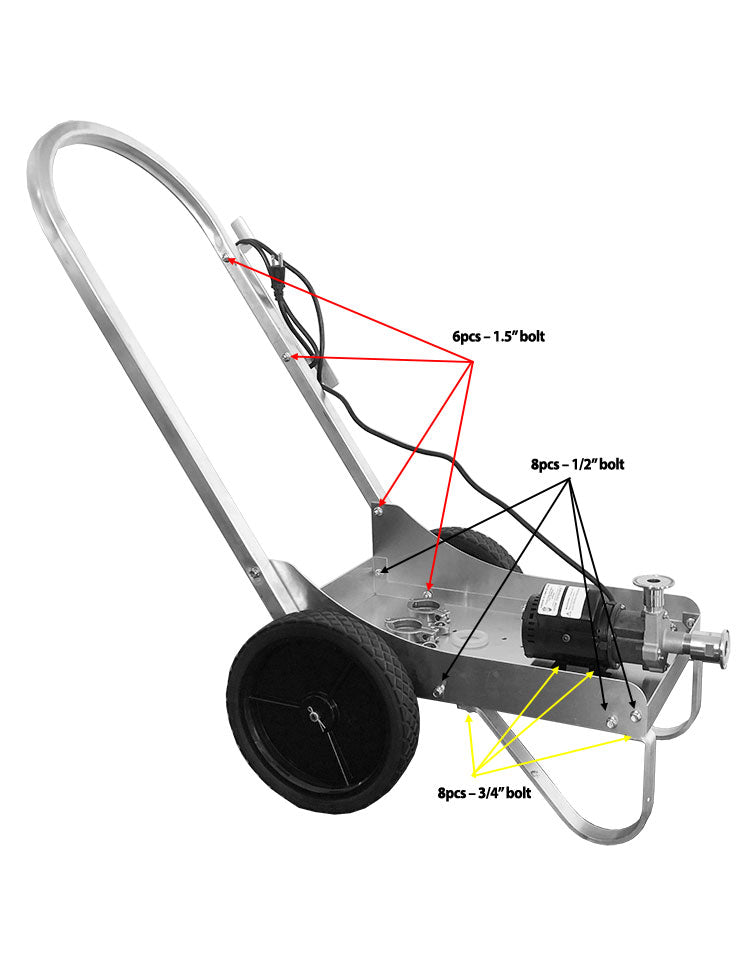

(Power cord and cart are NOT included with the 'pump only' option. Some assembly required.)

Note: do NOT operate these pumps dry. Water should always be unrestricted and free flowing into the pump through a 1" or greater diameter hose.

For details on Proposition 65 (California residents) see March's website.
