Water Level Sensor and Controller Kit

This Water Level Sensor and Controller Kit can be used with the BREWHA Touchscreen Controllers (1.5-15BBL Controllers) to automically turn the pump off when water levels drop low (below the sensor).

Additionally wiring is not needed inside the controller as the controller comes prewired for the level sensor. Just plug the controller box into the level sensor base inside the controller, and connect the level sensor to the 'Level Sensor' receptacle on the underside of the controller.

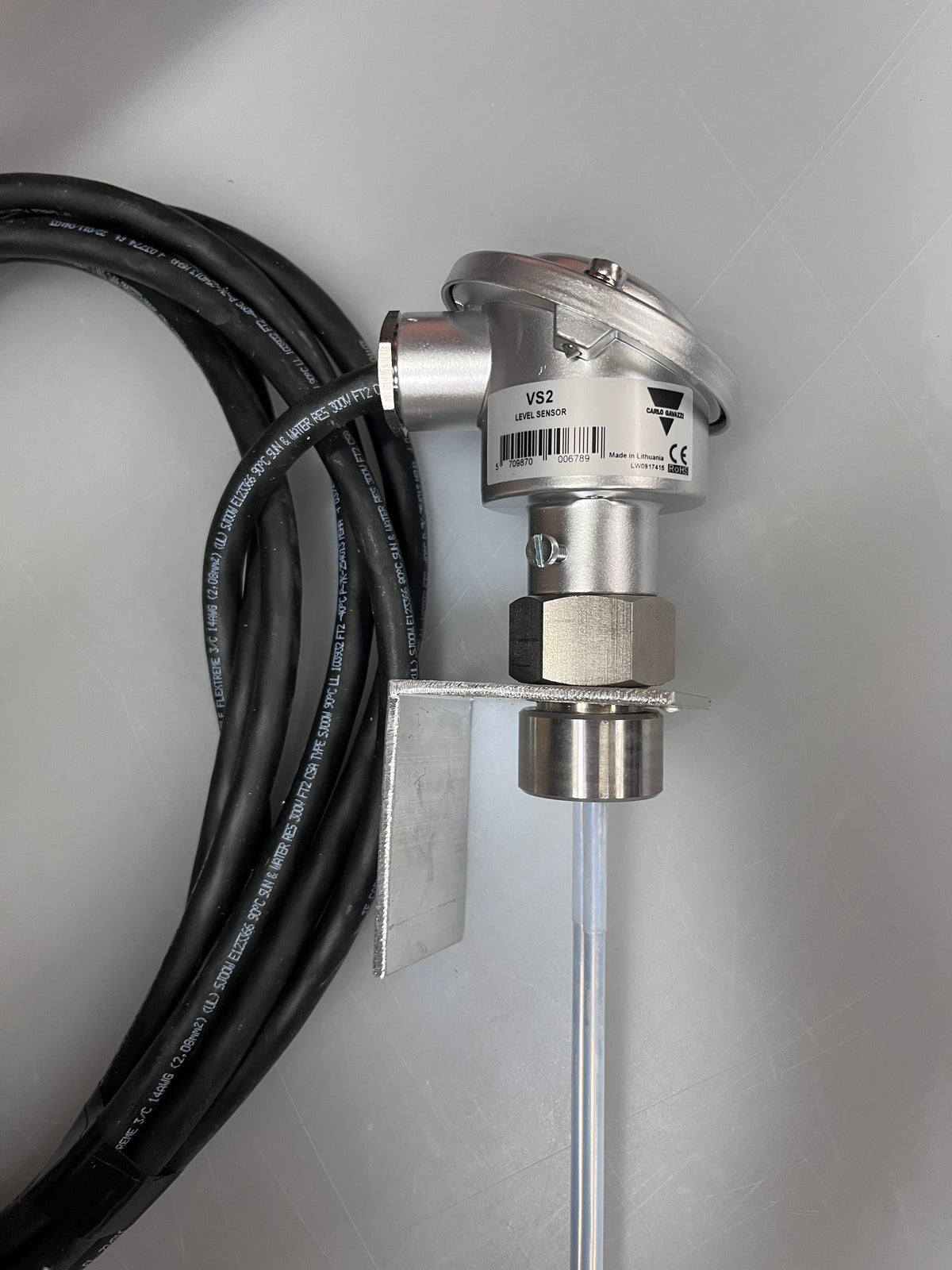

The Level Sensor comes with a bracket, to hold it over the side of a tank (like the BREWHA Mash Colander). With the pump on the 'Auto' setting on the controller, as long as the tips of the sensor are in water, the pump will be allowed to operate, but as soon as the sensors do not detect water, they will open the circuit and the pump will be shut off.

Ensure that the tips of the sensor have their teflon sheath around them; if the teflon is removed, the sensor could contact the metal tanks, and pass the signal through the tank to the other sensor, rather than through water (the water level could be lower but the sensor will not detect it.

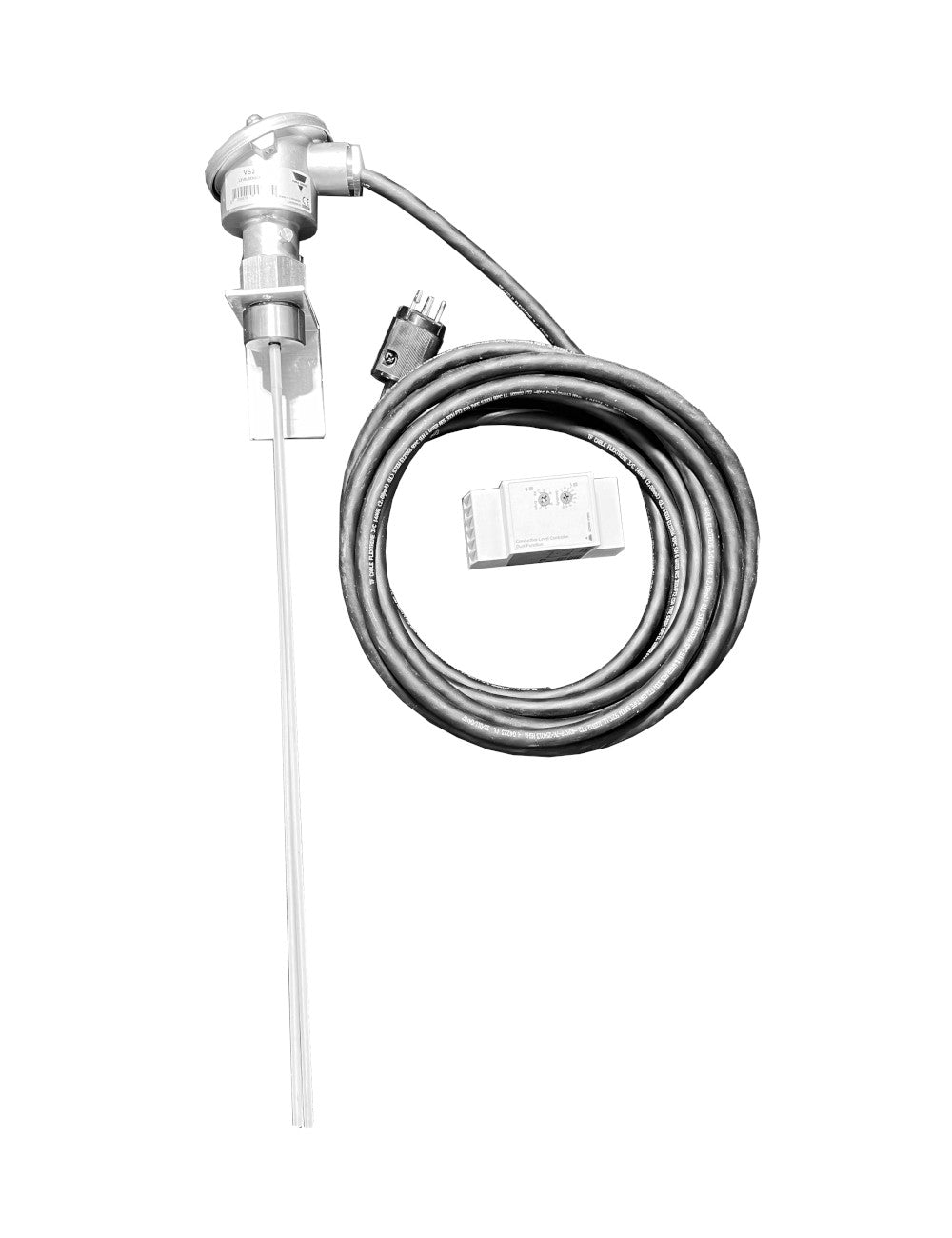

Includes:

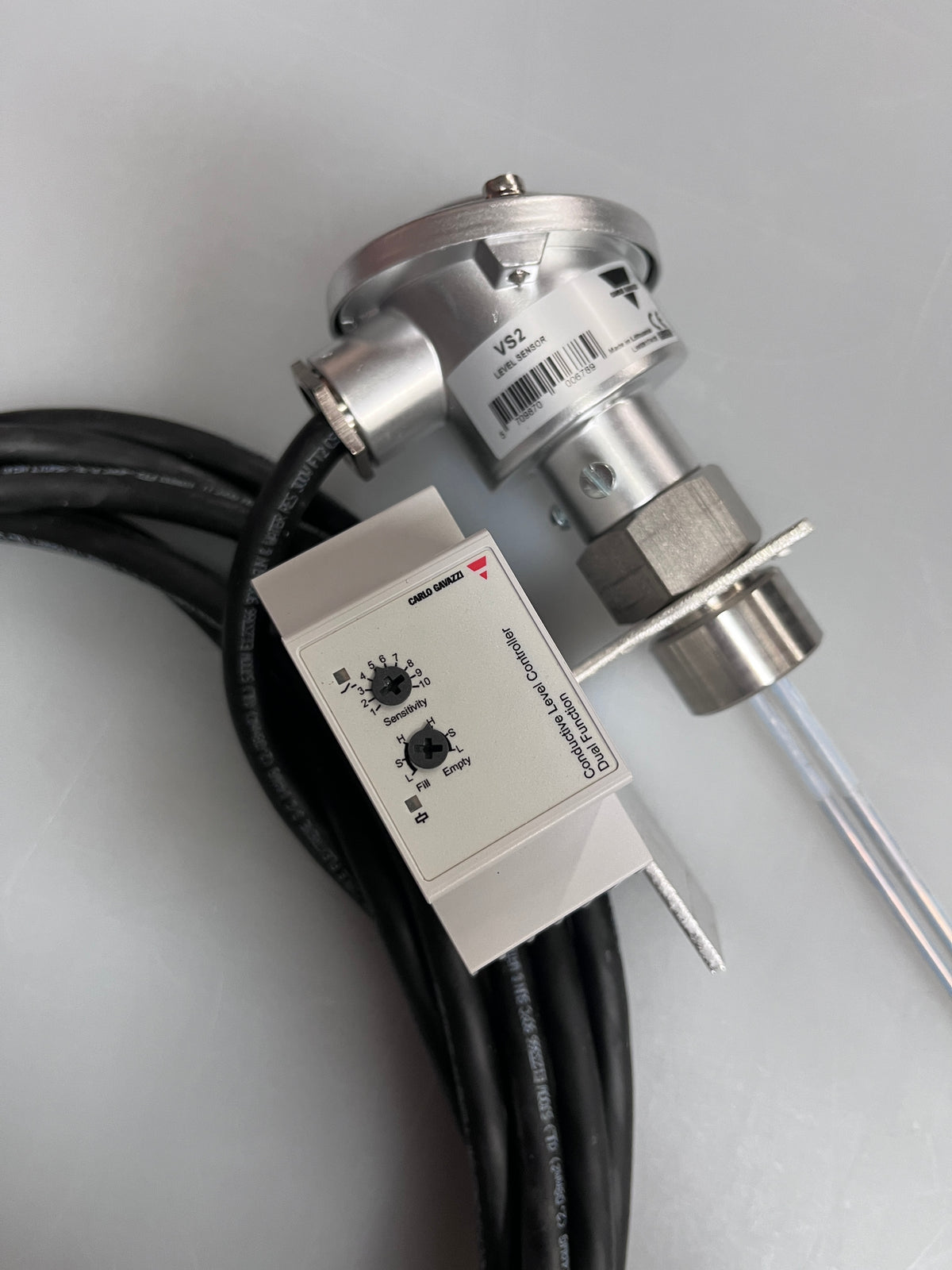

• Carlo Gavazzi VS2 level sensor
• Carlo Gavazzi CLP2EA1C230 controller
• 4m/13' of SOOW 14AWG cable
• HBL7485V male connector
