Plate Heat Exchanger Wort Chiller

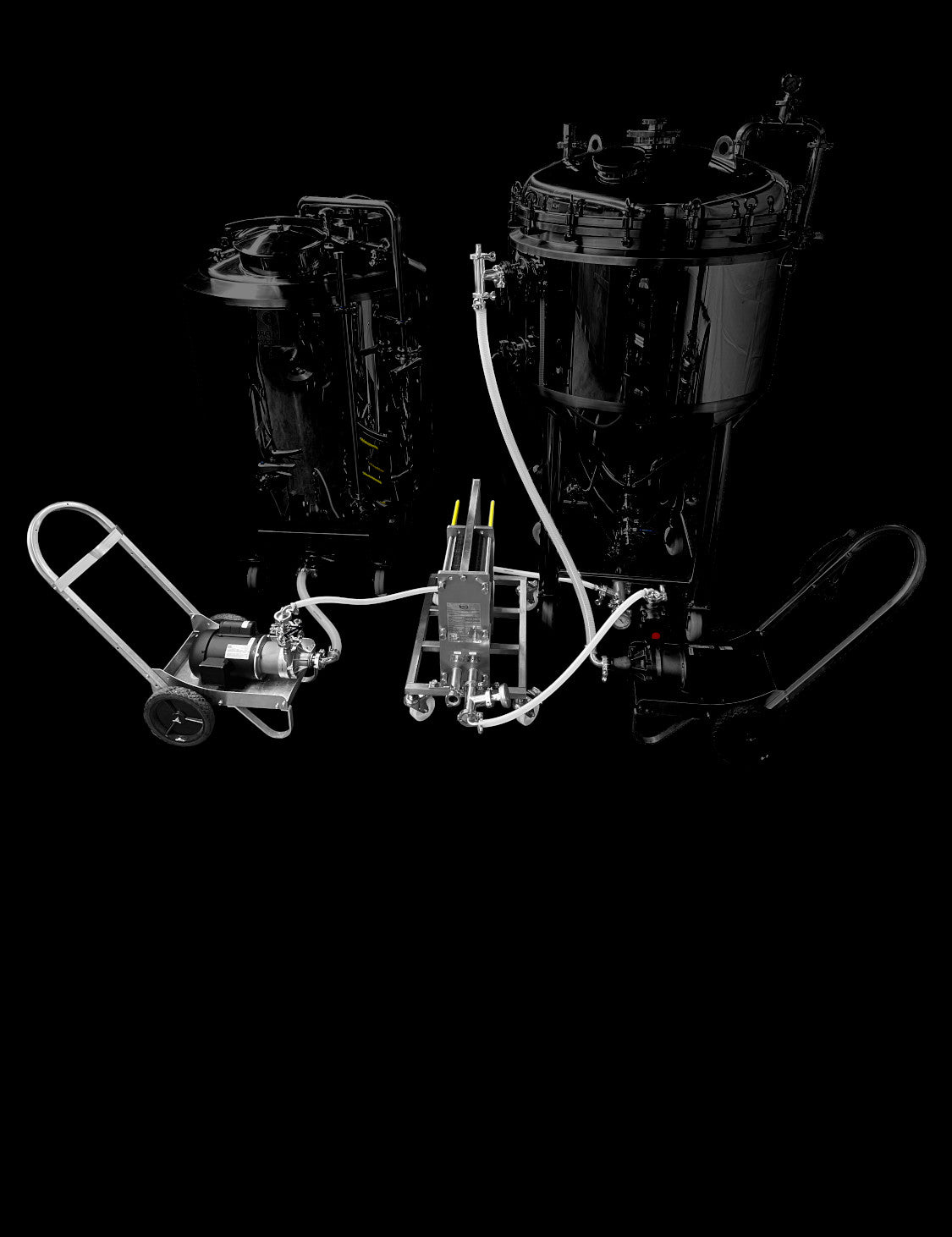

These 100% stainless steel, gasketed, counter-current heater exchangers / wort chillers use cold water either from one of our cold liquor storage tanks, or tap water if cold enough, to knock down the temperature of wort, or other media post-boil. This high efficiency plate chiller design with solid stainless steel frame (not just cladded steel) is capable of knocking down 15BBL (18HL) of water or wort in under an hour.

The single 1-stage high efficiency chiller design is suitable for one cooling media (for example tap cold water) and the dual 2-stage heat exchanger design is useful where two sources of chilled water are necessary to complete wort knock down, for example a mix of tap and pre-chilled ice water. The dual stage plate exchanger is used where tap water is not cold enough and/or one's pre-chilled cold water source is not large enough.

As an added benefit in certain applications such as a brewery, if one uses the next batch's brew water on the cold side to cool the wort, and transfers it from the hot side exit into a waiting brew tank and hot liquor tank, less energy will be required when heating on next brew day, saving electricity.

These exchangers are in a solid frame and come with removable stainless steel casters for high mobility and portability in your brewery.

Plate Heat Exchanger Wort Chiller Design Specifications
Direction of fluids: Countercurrent
Plate material / thickness: Alloy 316 / 0.50mm
Sealing material: EPDMFF Clip-on
Connection material: 304
Connection diameter: 1" SMS Sanitary Tri-clamp
Design pressure: 10 bar
Test pressure: 13 bar
Design maximum temperature: 130°C / 266°F

Single 1-Stage Plate Heat Exchanger Chiller
Volume flow rate hot side / cold side: 1.8m³ flow per hour / 2.4m³ flow per hour
Hot side inlet / outlet temperature / pressure drop: 99°C/12°C/25.8kPa
Cold side inlet / outlet temperature / pressure drop: 4°C/67°C/43.7kPa
Heat Exchanged: 175.1 kW
Heat transfer area: 3.0m²
Number of effective high efficiency thermal heat transfer plates: 95
Number of passes: 4
Dimensions (lxwxh in mm): 740x180x704
Liquid volume per side: 4.3L
Gross weight: 59kg

Double 2-Stage Plate Heat Exchanger Chiller
Section 1 (tap)
Volume flow rate hot side / cold side: 1.8m³ flow per hour / 1.5m³ flow per hour
Hot side inlet / outlet temperature / pressure drop: 99°C/30°C/37.3kPa
Cold side inlet / outlet temperature / pressure drop: 15°C/95°C/25.6kPa
Heat Exchanged: 175.1 kW
Heat transfer area: 4.6m²
Number of effective high efficiency thermal heat transfer plates: 143
Section 2 (ice water)
Volume flow rate hot side / cold side: 1.8m³ per hour / 1.3m³ per hour
Hot side inlet / outlet temperature / pressure drop: 30°C/12°C/37.5kPa
Cold side inlet / outlet temperature / pressure drop: 4°C/27.9°C/18.9kPa
Heat Exchanged: 36.29 kW
Heat transfer area: 2.5m²
Number of effective high efficiency thermal heat transfer plates: 79

Number of plate passes: 6*12H/4
Dimensions (l by w by h in mm): 1140x180x704
Liquid volume per side: 9L
Gross weight: 100kg
