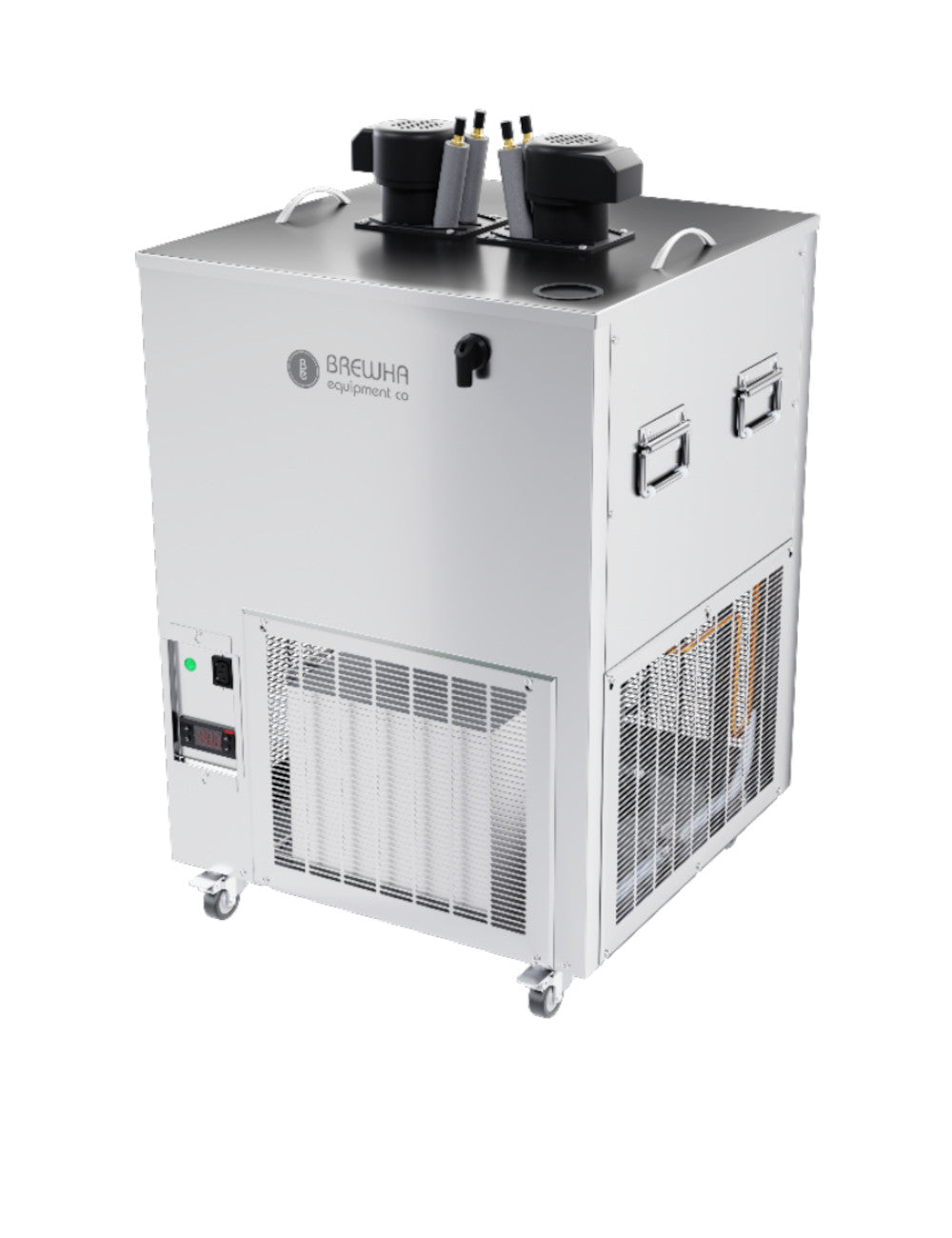

Glycol Chiller

Precision temperature control is essential for consistent fermentation and process cooling in brewing operations.

These glycol chillers delivers reliable performance in both 1/3hp (3600BTU/1060W cooling) and 3/4hp (7200BTU/2130W cooling) configurations, allowing you to select the capacity that matches your brewery's scale.

Glycol Chiller Features

These glycol chillers come with a number of unique features including:

1. Versatility. Can be used with either 100% water, or a 60/40 water/glycol mix. Use water only for chilling to ~3C/38F. Use a water/glycol mix if wanting to cool to or slightly below freezing.
2. Portability. With high quality stainless casters, the chiller can be moved to where needed, avoiding the high cost of permanent piping (or pipe changes)
3. Durability. Solid stainless steel construction resists corrosion in wet environments
4. Power. The 3600BTU can be used for regulating up to two 1.5BBL 5-in-1 fermenters or one 3BBL 5-in-1 fermenter. The 3/4hp model can be used for regulating up to two 7BBL 5-in-1 fermenters, or one 15BBL 5-in-1 fermenter.
5. Ease of setup. Both chillers can be used with a 120V/15A circuit for ease of connection

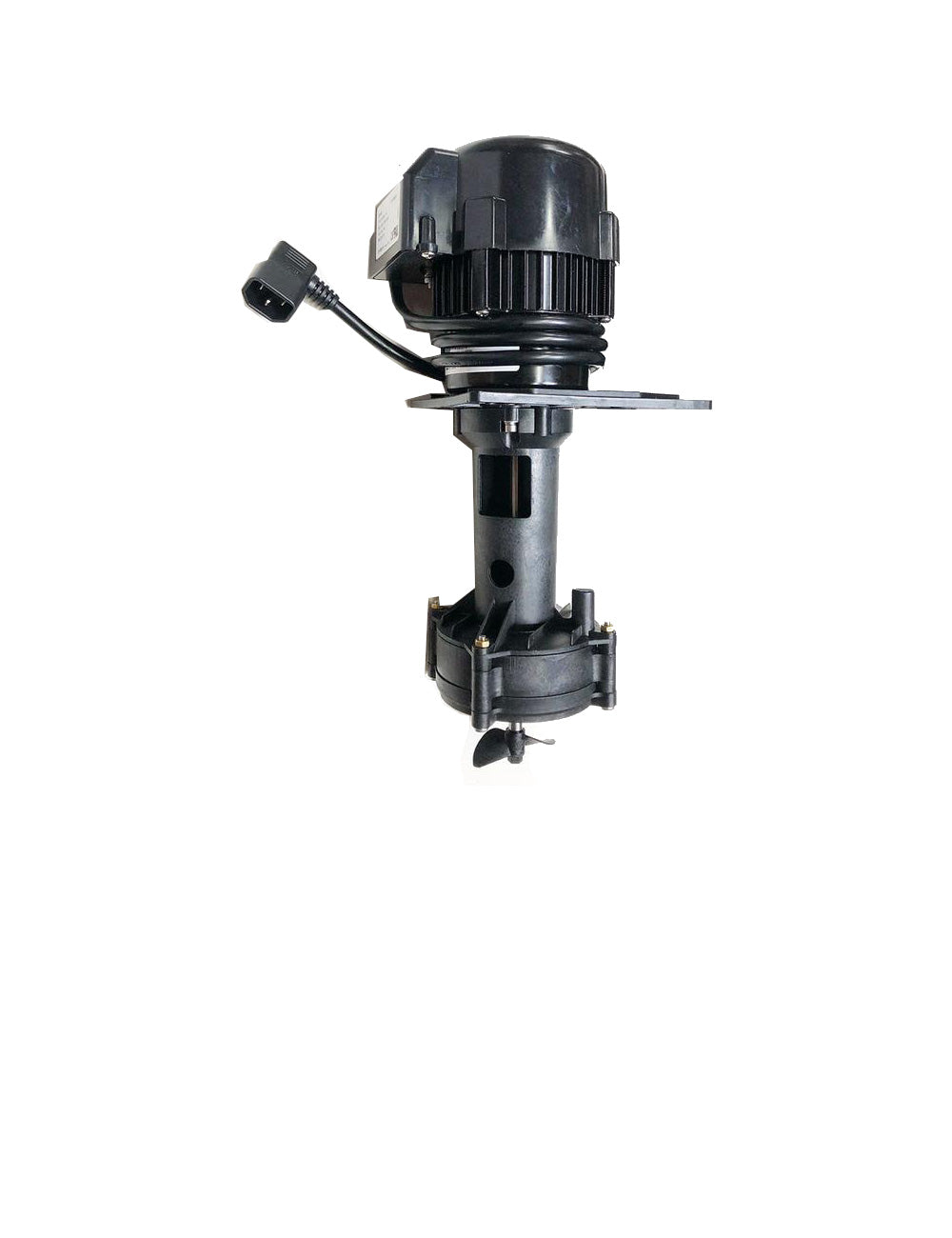

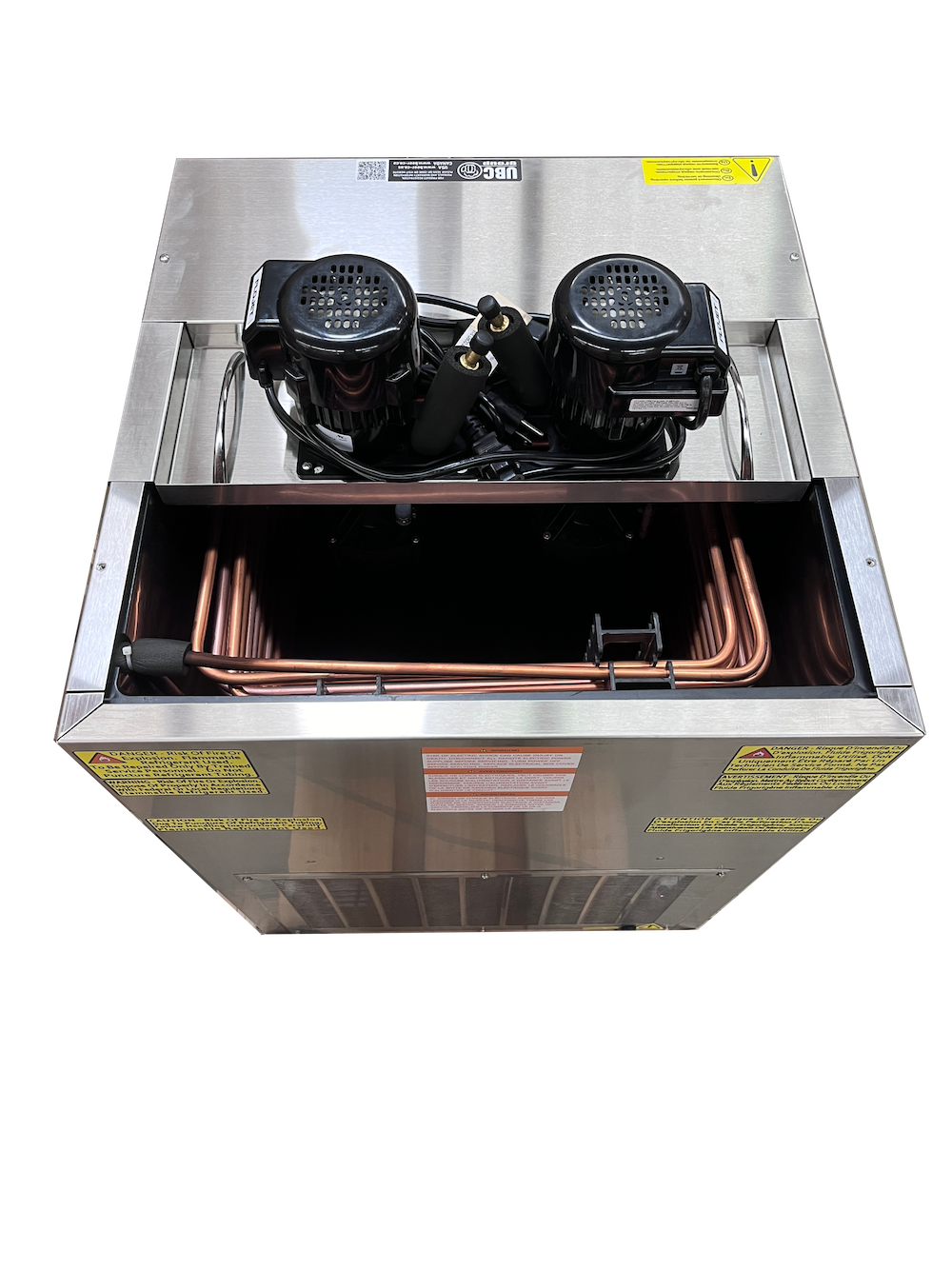

6. Flexibility. With two pump slots each chiller can directly regulate fermentation temperature in two tanks (needs ETC temperature controller to turn circulation pumps on/off). (The 3600BTU unit includes one pump and one blank pump slot; the 7200BTU unit includes two circulation pumps)

Glycol Chiller Specifications

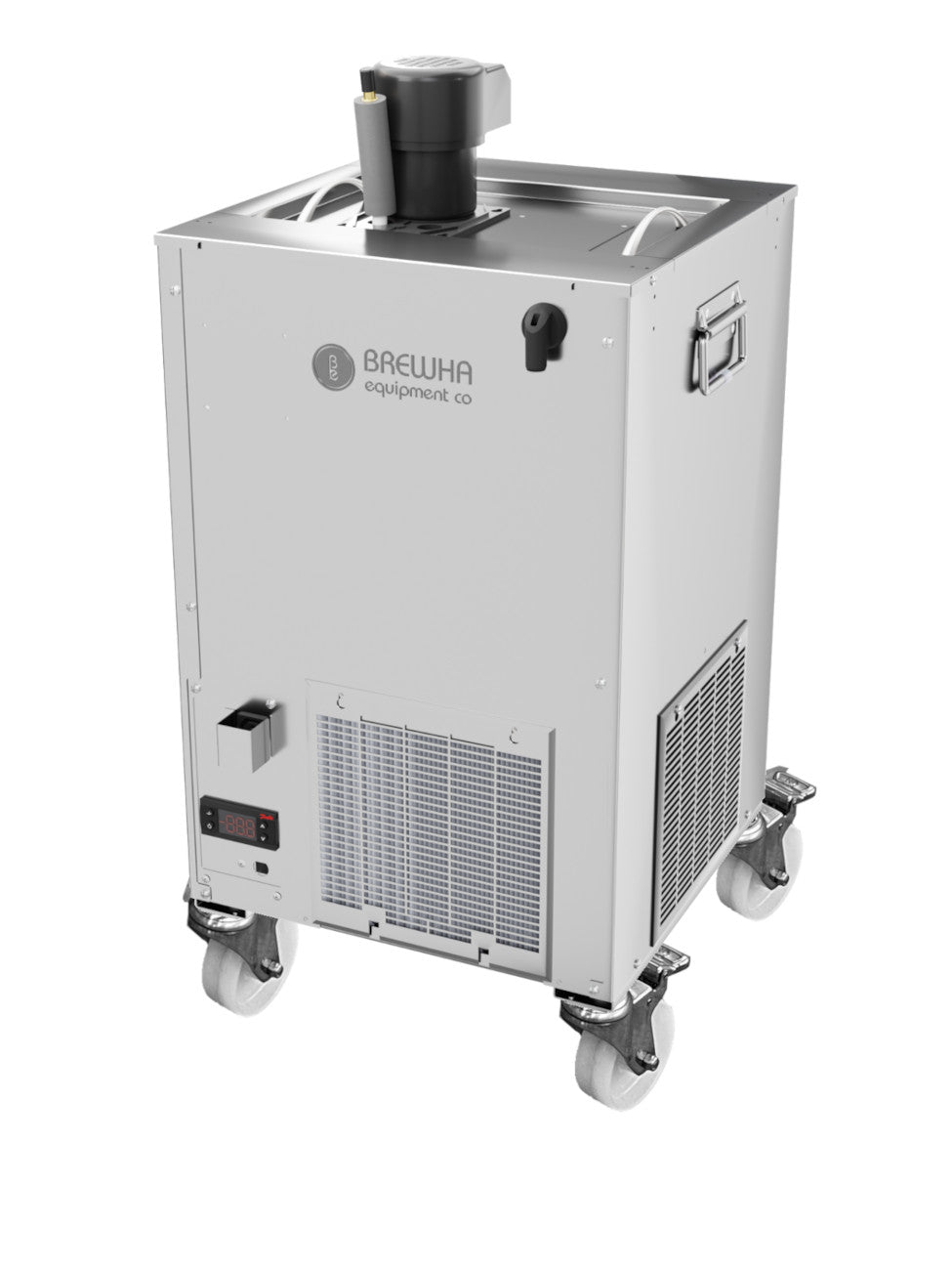

3600BTU Glycol Chiller
Voltage: 115V
Frequency: 60Hz
Compressor Power: 1/3HP; 7.28cc
Refrigerant R290: 105g
Nominal current: 8.8A
Cooling capacity: 120L/hr; 1072W; 3658BTU
Water tank capacity: 35L
Fan capacity/power: 650m3/h; 10W
Agitator pump capacity and water lift: 15.6L/min; 15.4m
Net weight: 41kg/90lb

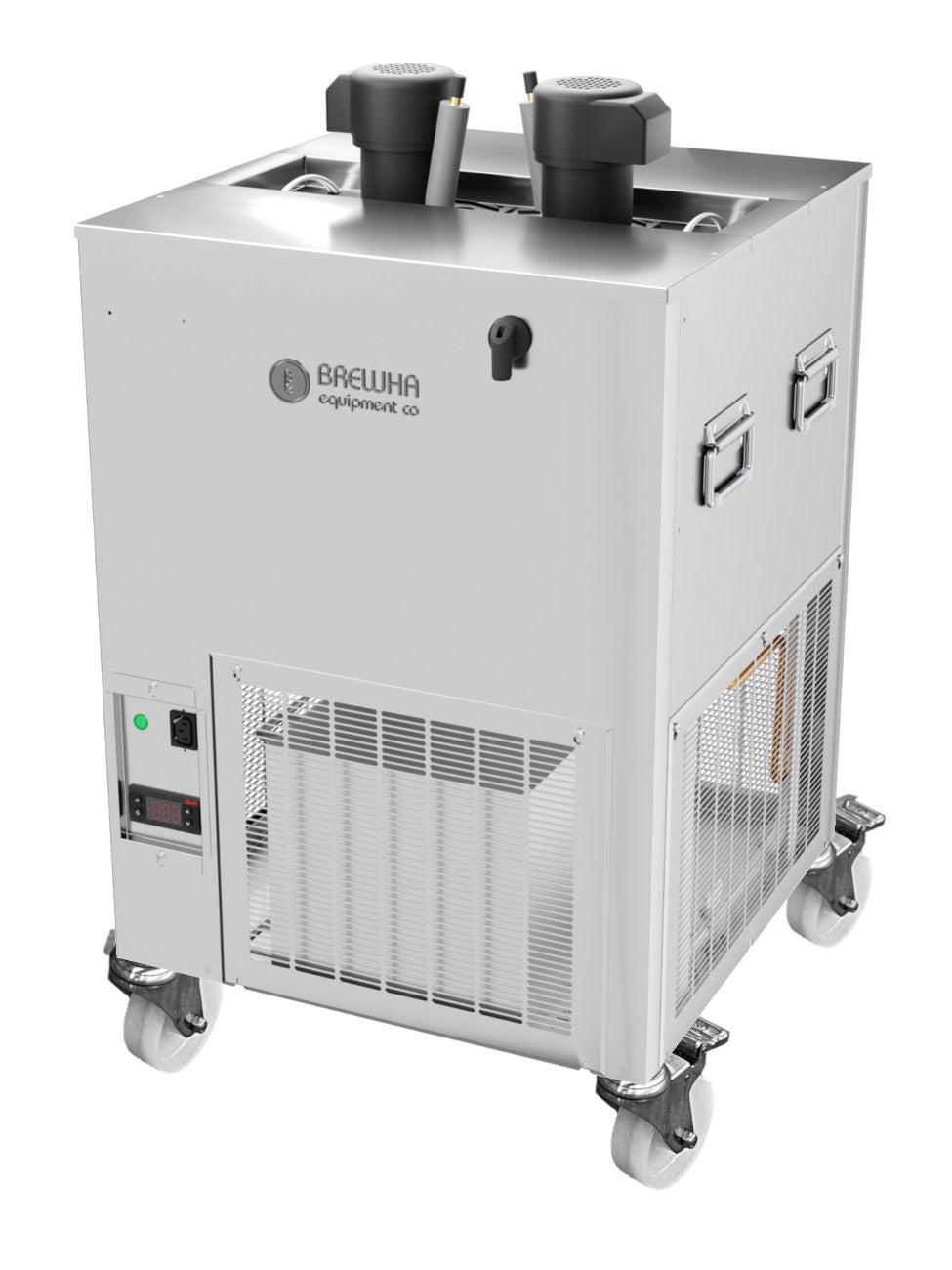

7200BTU Glycol Chiller
Voltage: 115V
Frequency: 60Hz
Compressor Power: 3/4HP; 17.39cc
Refrigerant R290: 130g
Nominal current: 11.4A
Cooling capacity: 200L/hr; 2131W; 7271BTU
Water tank capacity: 60L
Fan capacity/power: 1000m3/h; 18W
Agitator pump capacity and water lift: 15.6L/minx2; 15.4mx2
Net weight: 75kg/165lb
